Binoculars are a great tool for outdoor activities such as bird watching, stargazing, and hunting. Binoculars have many parts that work together to provide an enhanced image of distant objects.
Understanding the different binocular parts and their functions can help you make better use of your binoculars and get the most out of them. In this article, we will look at the various components that make up a typical pair of binoculars and discuss how they function together to create clear images.
By understanding all major Binocular Parts And Functions you will easily identify each part on your own pair of binoculars.

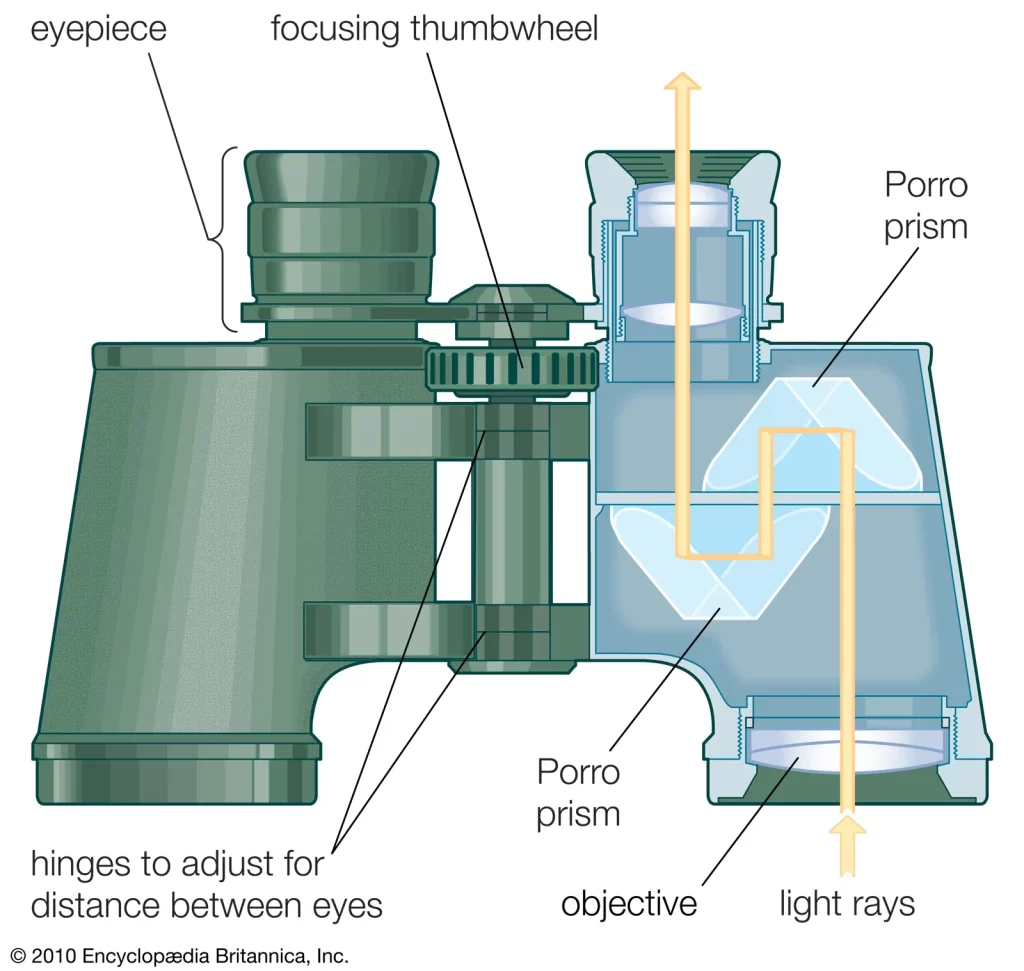

Binocular Parts And Functions Quick Guide
1. Binocular Barrels: This part of the binoculars helps to keep everything together and in place.
2. Objective Lens: Captures the initial, faint rays of light radiating from far-off sources.
3. Binocular Prisms: By adjusting the lenses, this component corrects and returns an inverted image back to its original orientation.
4. Eyepiece Lens: The final image is presented to the eyes.
5. Focus Knob and Diopter Adjustment Ring: This component allows a customized viewing experience depending on your eyesight.
6. Focus knob/wheel: Easily adjusts the focus of your binoculars to clearly view objects at various distances.
How do binoculars operate?
Binoculars are cleverly designed optical devices, the binocular parts and functions work together to magnify distant objects, making them appear larger and closer.
They use two lenses in tandem to make this possible, while prisms reverse the inverted images of the lenses and further reduce their size by redirecting light paths so they can be easier carried around. Binoculars function by exploiting the laws of optics and capitalizing on the attributes and movement of light as it passes through diverse media.
How do prisms invert images?
Binoculars are composed of a series of prisms that help invert images. The first prism inverts the image vertically, and the second prism inverts it horizontally. As light passes through these prisms, a small image is projected at the end of the focal length of the objective lens.
This image is then magnified by an ocular lens and presented to your eye for viewing. By combining two sets of binocular components, images can be inverted to appear correctly to our eyes.
How do binoculars make an image get into focus?
For a precise and clear image to be seen by the viewer, it is essential that the focal point of both the ocular lens and objective lens coincide.
What does binocular magnification mean?
Binocular power, also known as magnification, is a major determining factor when choosing binoculars for your specific needs. It indicates how many times an image appears larger than it would if viewed without the use of binoculars. Knowing this rating can help you decide which instrument will best suit your requirements.
The magnification number is calculated by dividing the focal length of a lens by that of an eyepiece. Popular magnification factors are 8x and 10x, meaning when viewing objects at 100m away, they appear to be only 10m away due to the power of tenfold magnification.
Who needs an eyecup to look through a binocular?
If you wear glasses, peering through binoculars can be a taxing prospect. Thankfully with an eyecup, your eyes will benefit from extra space that reduces the chances of light entering them and causing discomfort following extended use.
What is a binocular mount?
These mounts make it possible to affix your binoculars securely and firmly. You can attach them on almost any type of surface, including tables, walls, headrests, boats – you name it! The most common mount is the arm mount–they’re usually joined to either side of the eyepieces.
Are lens and binocular covers necessary?
- Lens covers: Every purchase comes with protective lens covers to prevent dirt or damage from affecting your lenses! Easy to use, just slide and they will stop at the edges of each lens. If your special pair of binoculars gets dirty, ensure you follow this guide to clean them in the correct way!
- Binocular covers: Taking the proper steps to protect your binoculars is paramount. A protective cover should be top of mind, as it will not only keep dust and dirt away from its lenses but also guard you against inadvertent drops or bumps that could damage your pricey equipment.
Binocular Parts And Functions Explained
Binocular Barrels
- Barrel-Bridge With Hinge: Binoculars are basically two telescopes joined together and must be precisely aligned to provide the observer with a simultaneous vision of both sides. The barrel bridge ensures that the barrels remain parallel to each other so that their optical axes stay in exact alignment. By attaching the bridge with hinges, we can easily customize the distance between eyepieces and the viewer’s eyes to achieve a personalized fit.
- Barrel or Tube: The barrel serves as the protective housing that encases all of the optical components. This secure structure prevents them from becoming jarred or moved due to external shocks, such as being dropped, ensuring their precise positioning and reliability.
Objective Lens
Positioned at the front of your binoculars – or its base, depending on how you look at it – is an expansive collection lens. The primary role of this component is to focus on whatever subject you desire and trap any light that reflects off it.
The incident light is gathered and focused on the focal point, typically with a lens system composed of two or more lenses to mitigate distortion.
The objective lens forms an image and then the eyepiece magnifies that image, delivering a larger version to your enthusiastic eyes as they search for new sights like spotting a panther in nature or admiring stars in space.
For optimum brightness in their view, hunters and stargazing enthusiasts require binoculars with larger lens diameters – the bigger the aperture. In contrast, lightweight compact binoculars that are ideal for occasional use or hikes may feature much smaller apertures of around 25 mm.
Binocular Prisms
Binocular parts and functions include prisms. Observing the white pelicans that grace our skies through binoculars would be near impossible without prisms.
These large wedges of glass, which come in pairs, flip objects by 90 degrees each to create a total 180-degree turn from their original orientation; thus preventing what would otherwise appear as an upside-down and backward view.
Crafted from crown glass, the prisms act as corrective mirrors that basically invert and flip an upside-down image projected by the objective lens. As a result, light is refracted through these reflective surfaces to produce a normal view for the observer.
- Porro Prisms: Porro prism binoculars are designed with two prisms that are oriented perpendicularly to one another, delivering an impressive viewing experience. Binoculars that feature Porro prism technology offer an array of advantages; they are cost-effective to produce, take up minimal space when assembled together, and require few components.
- Roof Prisms: Typically, a prism system consists of two prisms; one will have the contour of a roof slope. Roof prisms offer a sleeker and more refined design for binoculars, making them much slimmer. This style of prism tends to be pricier due to its complex production process.
Eyepiece Lens
At the front of binoculars, you will find two lenses that serve as eyepieces—or oculars—through which we can observe our environment.
The magnifying eyepiece of binoculars typically contains two or more lenses. When adjusted for focus, this device grants the viewer a clear vision of sharp images reflected through the prism system from the objective lens.
Diopter Adjustment Ring
To ensure tireless binocular viewing, the individual eyesight must be balanced to allow both eyes a clear image.
The perfect eyepiece can be tailored to counteract the dioptric discrepancy by adjusting the focus level of the ocular lenses.
To adjust your vision, start by closing the right eye and focusing on an object using only the left. Utilize the Center Focus Wheel to bring image sharpness into focus while fine-tuning with assistance from the Diopter Adjustment until you attain crystal clarity.
Focus Knob
Achieving clarity and crispness in your photos is made possible through the focusing ring.
This circular handle, available as either metal or plastic, must be rotated to achieve this precision; however, if it’s too tight then you’ll have difficulty turning it freely and vice versa for an overly loose handle that turns on its own accord.
The mechanism behind this process involves moving the lens towards or away from its mount which ultimately changes the distance between them both.
Features To Look for In Binoculars
In addition to analyzing the binocular parts and functions, there are other key features you ought to be aware of when on the lookout for binoculars.
Foldable
For those who are frequently on the move and need a reliable pair of binoculars, look into purchasing folding models. Foldable binoculars not only provide convenience but also make transporting them much easier compared to traditional ones. Pair these with a great harness or strap to transform your binoculars into the best travel companion.
Wide-Angle
With an expansive field of view that surpasses any other binocular kind, roof and Porro prism designs are available to meet your needs.
Most birdwatchers prefer a panoramic view as it makes searching for those hard-to-find songbirds that much easier.
Zoom
Zoom binoculars can be both a blessing and a curse. On one hand, they are quite versatile in certain situations; however, the downside is that they tend to distort your line of sight by shrinking the field of view.
High Power
If you’re interested in things that are far away, you might want to use high-powered binoculars. Let’s say, you enjoy looking at the cityscape from your building’s rooftop or love gazing at the stars.
Focus-Free
These binoculars don’t require any focus when using them because they are designed to be fixed at certain ranges. Perfect for beginners.
Image Stabilizing
Image-stabilized makes it easier to keep a steady image, eliminating any guesswork and minimizing the effects of human error. These are ideal for users looking for sharp images during activities that require constant movement, such as birdwatching or watching sports games.
Waterproof
If you plan on using your binoculars outdoors, waterproofing should be a top priority. Unexpected showers or rainstorms can appear out of nowhere, and it’s vital that your binoculars are protected in case one does.
Tripod-mounted
Tripod-mounted binoculars are a must-have if you want to get the most out of your high-powered optics. Without them, even the slightest movements can cause image blur from shaky hands and leave you with an unsatisfactory viewing experience.
Not only will mounting provide stability for sharper images but it also keeps your binos secure so that accidental drops don’t occur.
Types of Binoculars
Roof Prism Binoculars
Roof prism binoculars are the pinnacle of modern design. Not only are they more lightweight and compact than their older Porro counterparts, but their sleek straight-tubed shape gives them a much simpler look.
Even though they may appear simple at first glance, these instruments offer far more power and capability than traditional binoculars.
When the light from your target passes through the objective lenses, it is reflected along a complex network of pathways before finally arriving at the ocular lenses and being seen by you.
Porro Prism Binoculars
The Porro prism function uses a set of two triangular prisms that work together to reflect light from your objective lenses. This reflection magnifies and inverts the image of your target, giving you a clear, sharp picture.
Porro binos usually present a much clearer and more vibrant three-dimensional image than roof prisms, plus they offer an expanded field of view compared to the standard straight-tubed roof-style binoculars.
Astronomy Binoculars
As an enthusiast of the stars or a budding astronomer, you understand that having quality binoculars is essential to your stargazing adventures. Check out our buying guide for the best astronomy binoculars under $100!
Of course, telescopes are always reliable, but they aren’t always available or ideal for certain occasions. That’s why owning dedicated astronomical binoculars is a savvy choice.
These types of binoculars are available in a wide variety of styles, ranging from small enough to fit comfortably into your pocket for on-the-go viewing.
Night Vision Binoculars
If you’re in need of binoculars for nighttime or dim-lit situations, then a standard pair won’t do. In these instances, consider investing in night vision binos to ensure you get the most out of your viewing experience.
Marine Binoculars
Marine binoculars are a special type of optics designed for use in and around water. Featuring wide ocular and objective lenses with low-to-moderate magnification power, these binoculars provide an expansive field of view on the high seas — or while simply admiring majestic whales.
How To Correctly Adjust A Binocular Diopter Video Tutorial
As you can see, there are a few binocular components. Show you all the binocular parts and functions might be tricky, but in this video tutorial, you’ll be able to identify the right steps on how to correctly adjust the diopter so that you can get clear images when using your binoculars.
Final Thoughts
Binoculars are an incredibly useful tool for birdwatchers and stargazers alike, but they can also be used effectively by hunters, hikers, or anyone looking to get a closer look at the world around them. Binoculars operate using several binocular parts and functions that work together in order to magnify distant objects.
Understanding the binocular parts and functions or binocular components is essential if you want to make sure your device works properly.
We’ve provided a detailed description of binocular parts and functions so you can gain a better understanding of what’s going on inside those compact lenses.
Now that you know more about binocular parts and functions, it’s time to go out there and explore!
